Lens Ring Joint Gasket

Len Ring Joint Gksket

Style KXT 840 Lens Ring Joint Gasket

Lens RD 'Dichtung, An also known as washer with ball face, An is mainly used for the high pressure pipe connections. The primary function

of lens ring gasket is to seal. Metal lens gaskets includes metal flat D 'Dichtung,An triangular D 'Dichtung,An double cone ring, An C-ring and C type

D 'Dichtung,An ring D 'Dichtung,An serrated D 'Dichtung,An wave gasket and hollow o-ring, An etc.. .

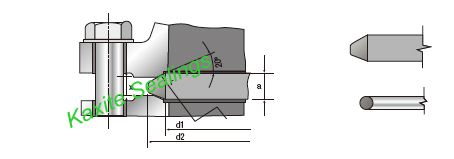

It is wide to use the lens ring gaskets to seal in the high pressure pipe connections. Seal faces of lens ring gaskets are ball surface, An in

Kontakt with conical sealing surface of the pipe, An the initial state is in a loop. By the action of the preload force, An lens ring gasket has a

plastiquen Deformationat the Kontakt point and the loop is into a belt loop, An which has the better sealing performance. The Kontakt face is

natierleche Form vu Kugelsurface and beveled surface, An so the gasket is easy for alignment. Lens ring gasket is the forced seal

Dichtung.

Main Style

Eegeschaften

D'Längt vun der Lensringlinn gëtt fir d'Päifachdichtung applizéiert dat den Drock net manner wéi 10MPa ass.

2.Lens ring gasket is of line seal, An large expansion and contraction, An large compensation and easy compact.

3.Due to Kontakt with flange cone face, An easy to have the pressing mark. The interchangeability of part is poor.

4.Lens ring gasket is also pressure energized, An as well as the double-cone Dichtung.

5.De Härcht Oflënze Rings Gasketmust be15 ~ 20HB manner wéi de Paart Flange Gesiicht.

Performance Parameter

Materials

Soft Iron, An Low C/S, An ss410, An ss304, An ss316, An ss347, An F5, An F11, An Copper, An Aluminum, AnInconel 600, An Inconel 625, An Incoloy 800, An Incoloy 825, An

Monel 400,An Titanium, An Nikel 200, An Hastelloy C276, An Zirconium702

Applikatioun

The gaskets are primarily used in the oil, An gas, An petrochemical and offshore industries. They are also commonly used on valves, An

Päifaarbechten assan d'Gefängnisstären a si gi benotzt fir Flankschnëtter ze verbannen, déi ënnert héijer Drëchent a Temperaturen ofgeschloss ginn.

Technesche Stand

It can provide any standard and non-standard sizes, An including the standards of API 6A, An ASME B16.20, An DIN 2693-67, An JPI-7S-23-72, An

DIN-2696-1999 ananer Standards.
